VFOLD Inc. delivers high-performance slurry dewatering systems built for simple, reliable, continuous operation.
The V-Fold Folding Belt Filter Press offers a simple, cost-effective solution for continuous slurry and sludge dewatering. Engineered for reliability and ease of operation, it delivers consistent performance across a wide range of applications.
At the core of the system is our patented folding belt technology, designed to handle process fluctuations that commonly disrupt conventional dewatering systems. This forgiving, resilient design helps maintain stable operation, reduce downtime, and ensure dependable results—even under challenging conditions.
VFOLD Inc. builds reliable, high-performance sludge dewatering systems designed for simple operation and long-term results.
Our patented folding belt technology handles process upsets, reduces complexity, and delivers consistent performance—all within a compact footprint.
Explore our solutions and connect directly with our team for sales and technical support.
Our technology is engineered to handle complex wastewater challenges while maximizing throughput and minimizing operational costs.
Every system is designed with clarity and purpose—so you can quickly understand its value, integrate it seamlessly, and achieve consistent, measurable results.

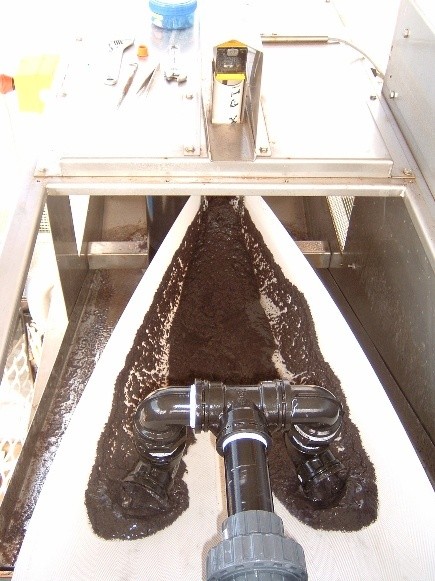

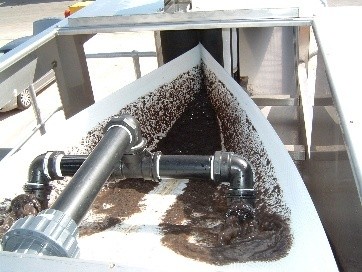

Industries in the small to medium size range often experience variable wastewater quality. The V-FOLD is “forgiving” of variations in feed composition that can disrupt conventional dewatering equipment. The feed cavity simply fills more or less depending on slurry conditioning. This can mean the difference between frequent operator intervention and the ability to leave the filter running almost unattended.
The combination of horizontal and vertical rollers ensures the filter belt is inherently self-tracking.
No additional tracking devices are required on the V-FOLD, simplifying operation and reducing maintenance.
Slurry feeding is unusually simple to automate. An optional V-FOLD automation package uses ultrasonic level sensing over the feed cavity to control the feed rate. This maintains the desired slurry level for effective dewatering while also enabling alarms to signal process upsets.
V-FOLD units are available in a range of models to suit different process automation requirements—from “bare” units for site-supplied electrical wiring and control, to fully integrated dewatering system control models.

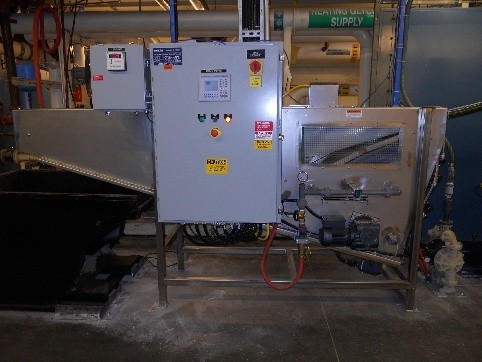

Advanced control models feature a highly flexible electrical panel capable of monitoring and controlling ancillary equipment commonly used in conventional dewatering systems. In many applications, this level of automation makes reliable unattended operation a practical reality.

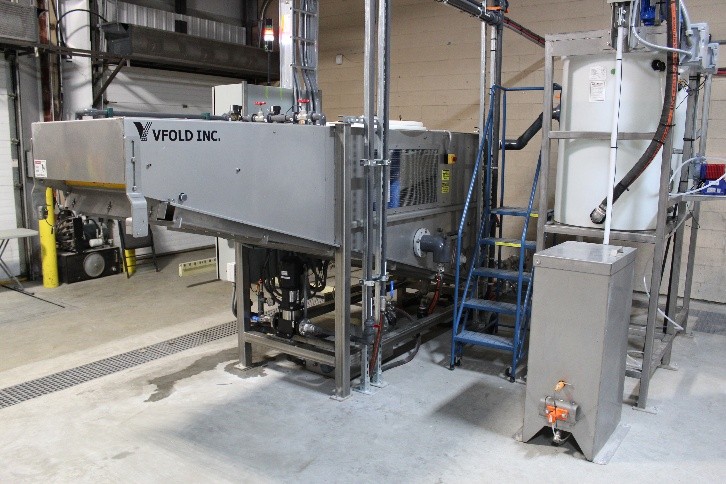

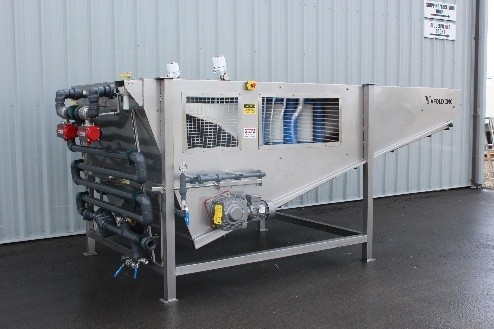

A compact footprint (from approximately 3 m × 1 m), combined with optional factory mounting of ancillary equipment and control packages onto the filter frame, makes installation straightforward.

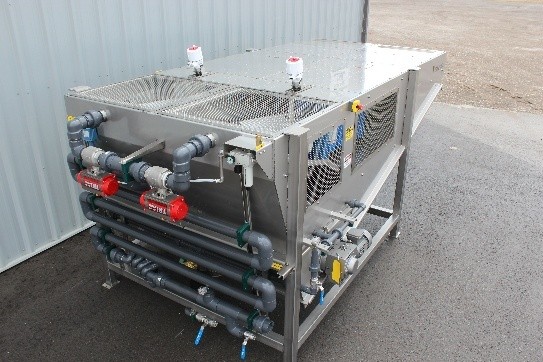

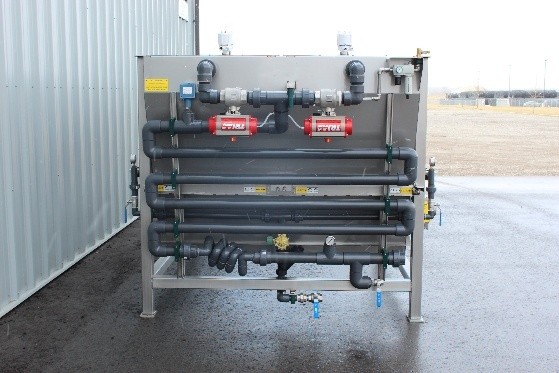

Where slurry conditioning is required, polyelectrolyte can be dosed into a “serpentine” mixer/flocculator that is factory-fitted to the V-FOLD.
The unique design also allows certain Dissolved Air Flotation (DAF) and clarifier processes to feed slurry directly to the V-FOLD, eliminating the need for an intermediate storage tank.
The simple design, 316 stainless steel frame, and slow-moving belt combine to deliver a reliable filter requiring minimal maintenance. Power requirements are very low, allowing the belt drive to operate on single-phase power.
The forgiving nature of the V-FOLD reduces the need for operator intervention, helping to minimize labour costs.
V-FOLD units are available as economical “bare” models or can be factory-fitted with a wide range of options to suit specific application needs.
The V-FOLD filter is capable of dewatering a wide range of feed materials. Three sizes are available, each offering various options to suit specific customer requirements.
As with all dewatering equipment, performance depends on the characteristics of the feed slurry. The V-FOLD operates effectively with slurries ranging from approximately 1% to 10% dry solids (DS), with feed rates up to 12m3 per hour.

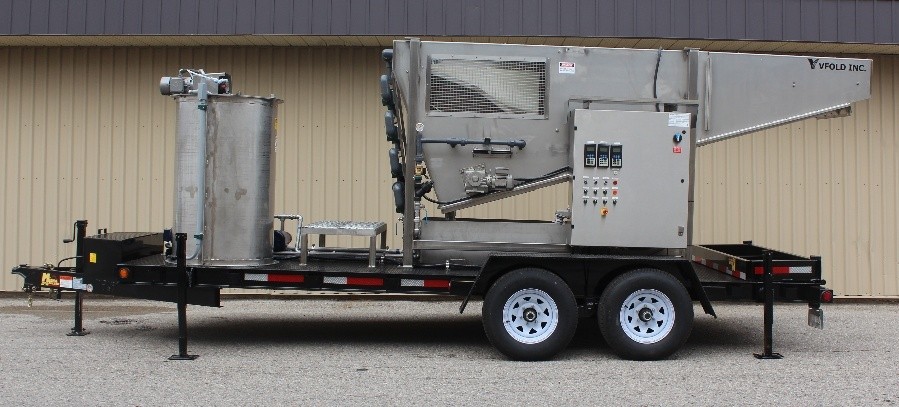

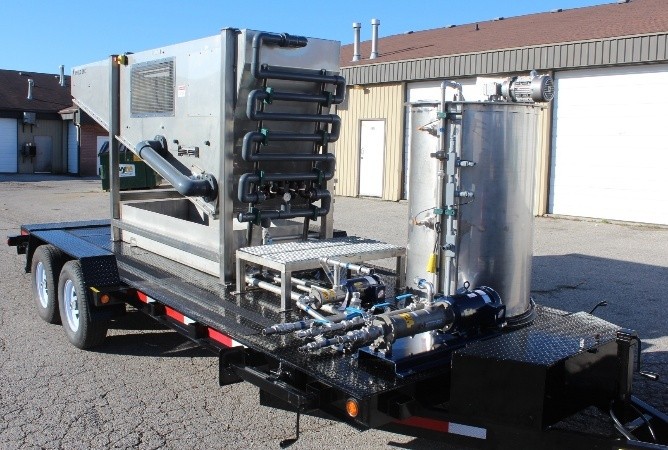

Explore our complete product lineup, including the SS-600, Maxi-V, MV-Tandem, RDT, Polymer Make-Down systems, and Mobile Dewatering solutions.
Discover how VFOLD integrates into a wide range of dewatering processes, including dissolved air flotation (DAF), clarifier underflow, biological treatment, and other industrial and municipal waste streams.
Explore real-world wastewater treatment applications across industries including food processing, municipal sewage, metal finishing, tannery, winery, and more.
